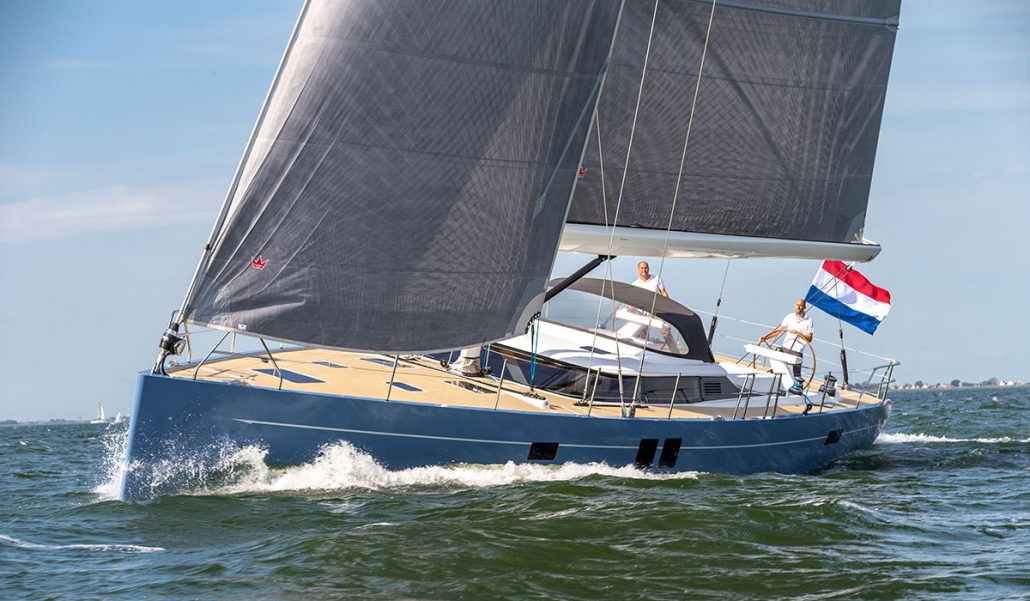

RS1900

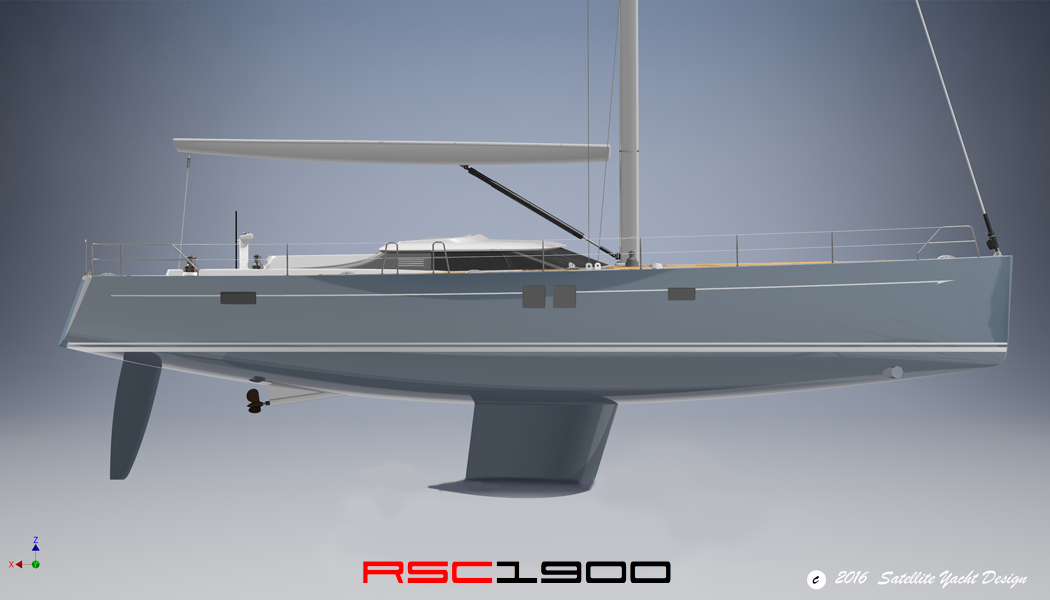

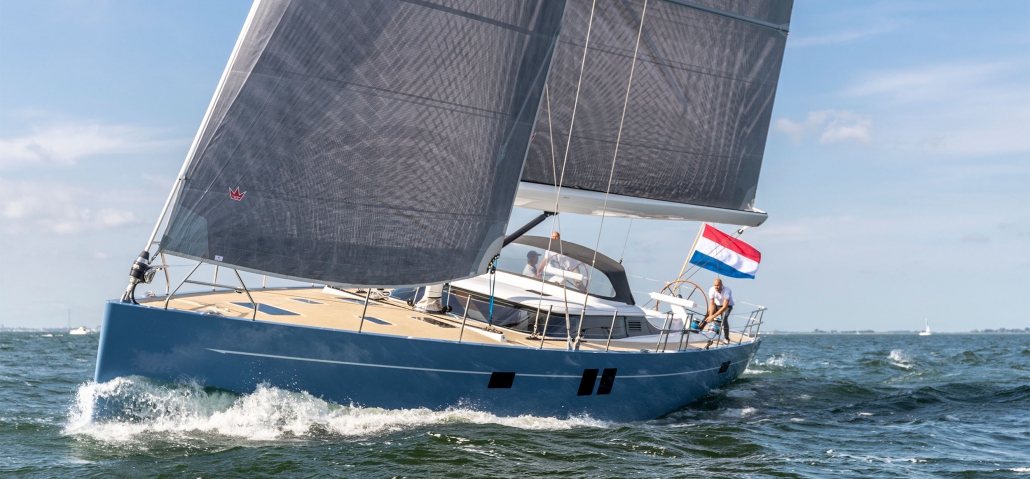

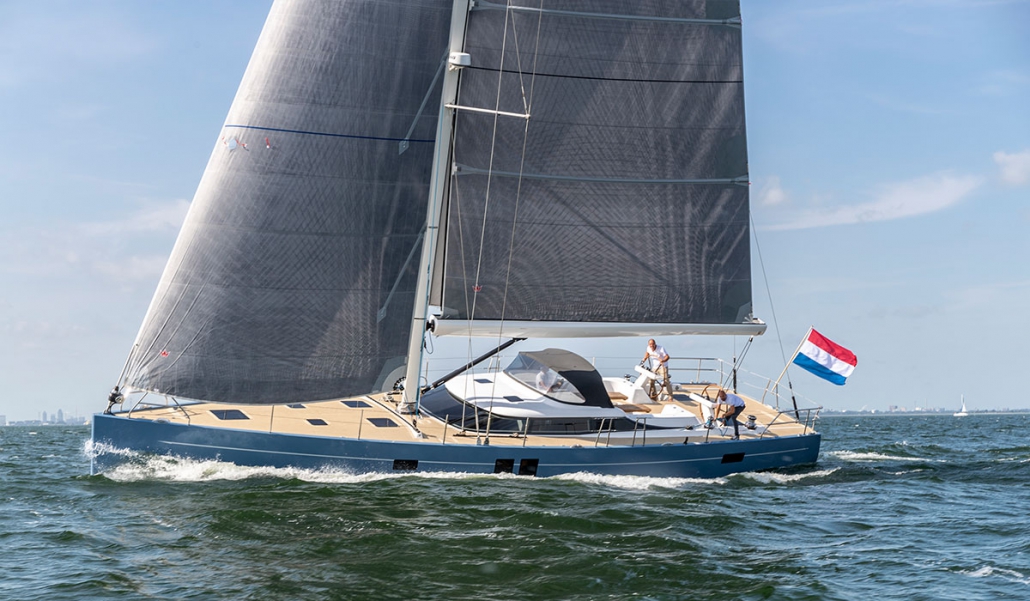

The RS1900 is developed in cooperation with the client and the concept is a fast, safe and modern shaped yacht with a comfortable interior and an integrated dinghy storage with a transom door. The RS1900 is constructed in aluminium.

Design no172
Design name RS1900
Length 18.64 m
Beam5.35m
Displacement24.00 t
Type of yachtCruiser
Building material Aluminium
Boatyard Bloemsma Aluminiumbouw BV
StatusUnder Construction

Deck

Deck

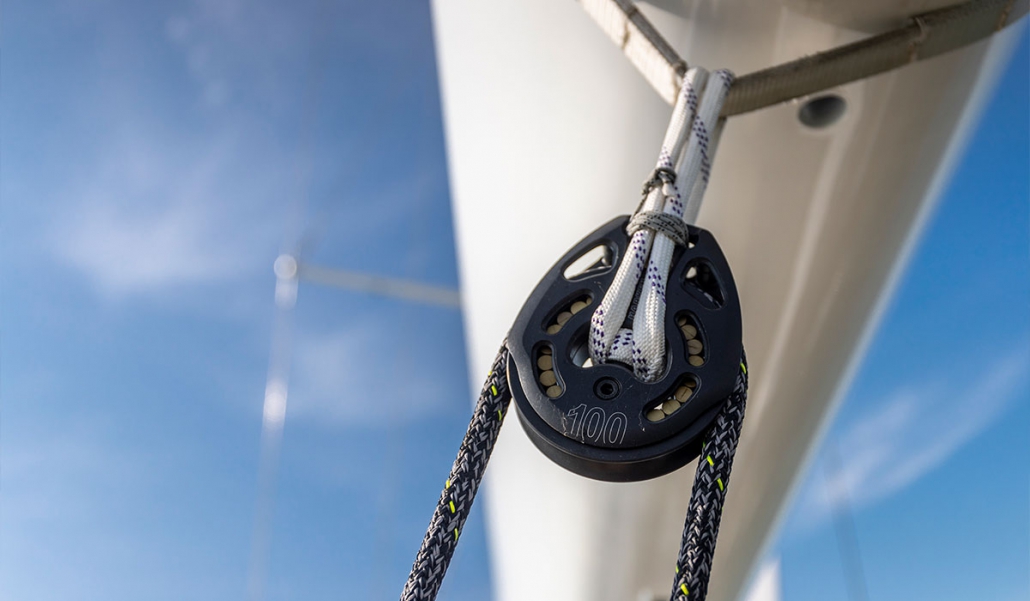

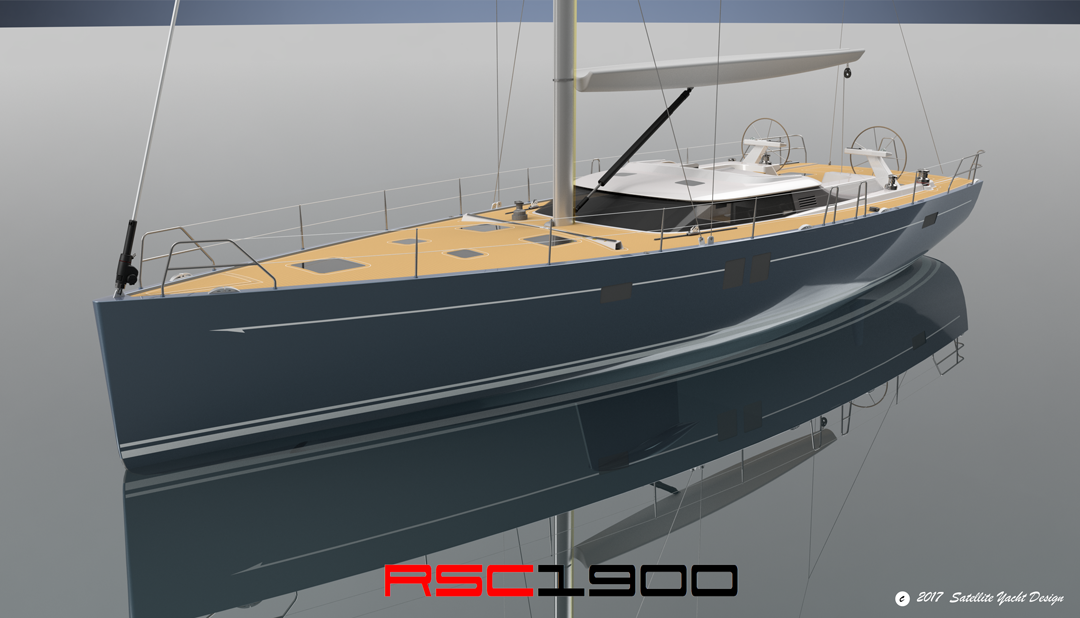

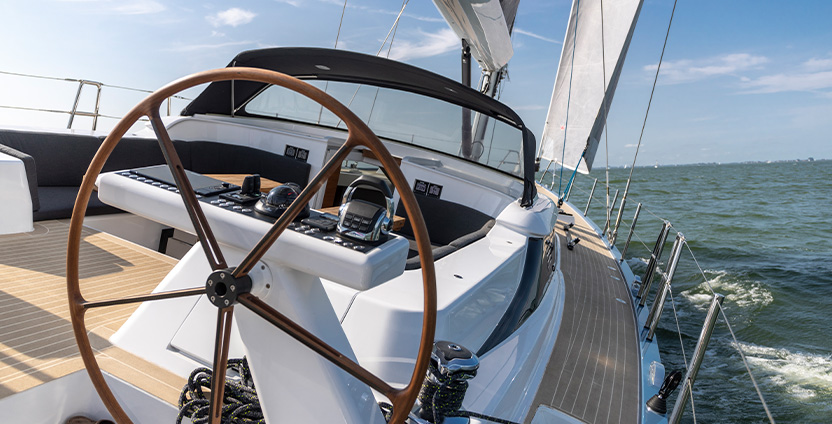

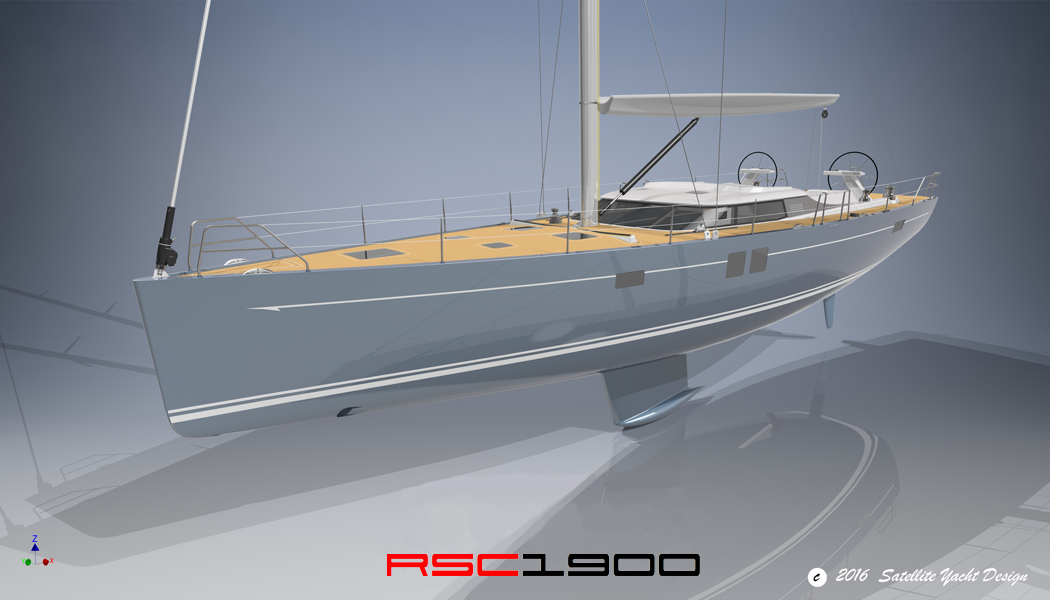

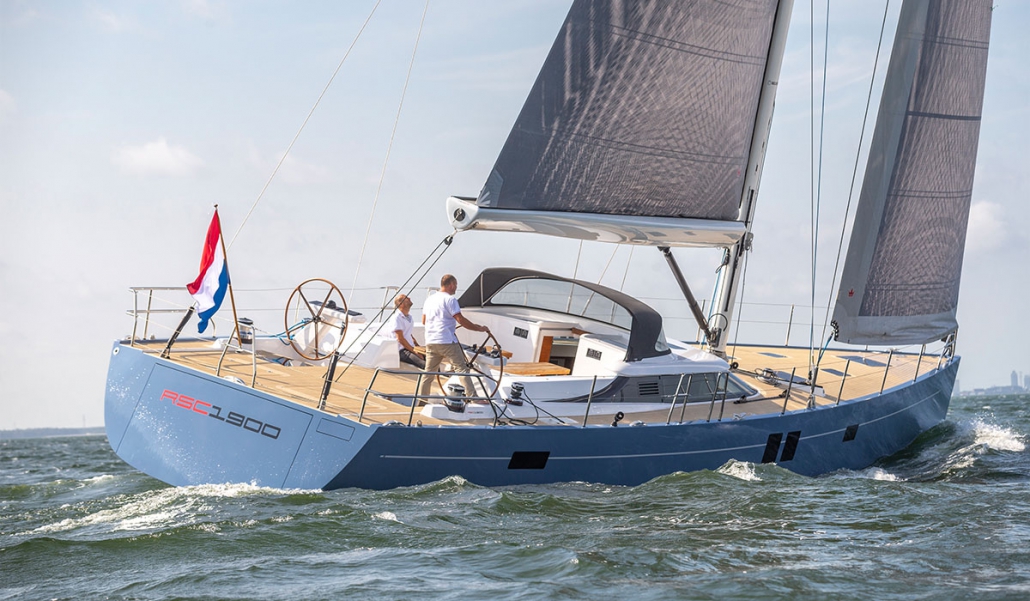

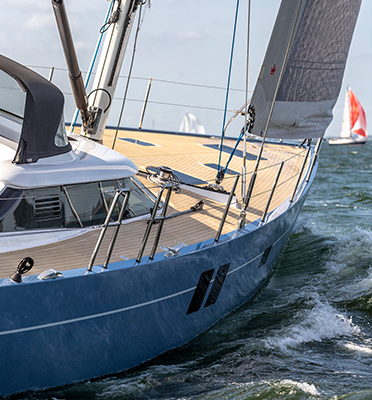

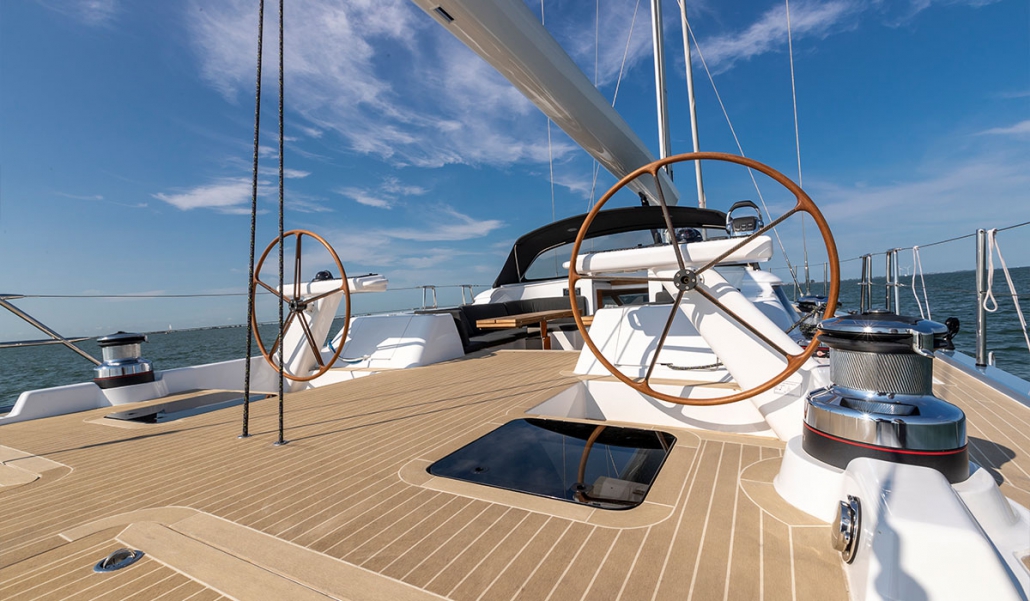

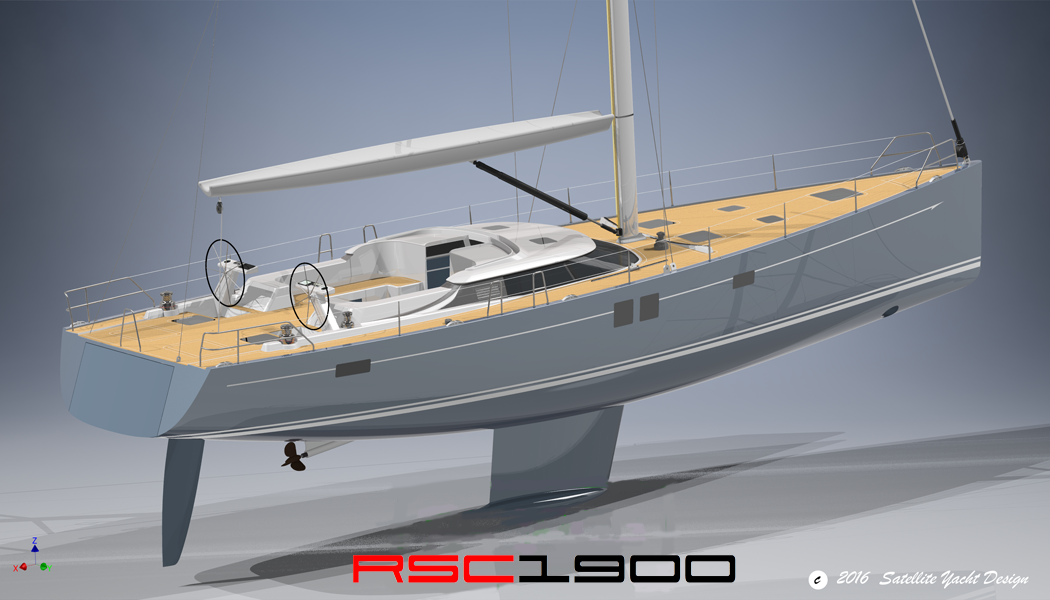

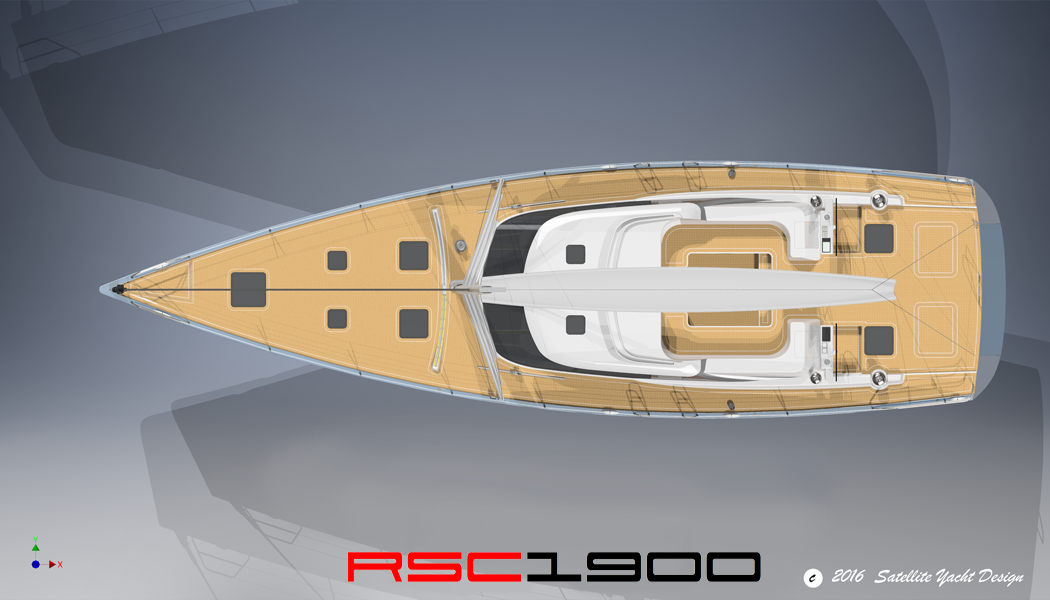

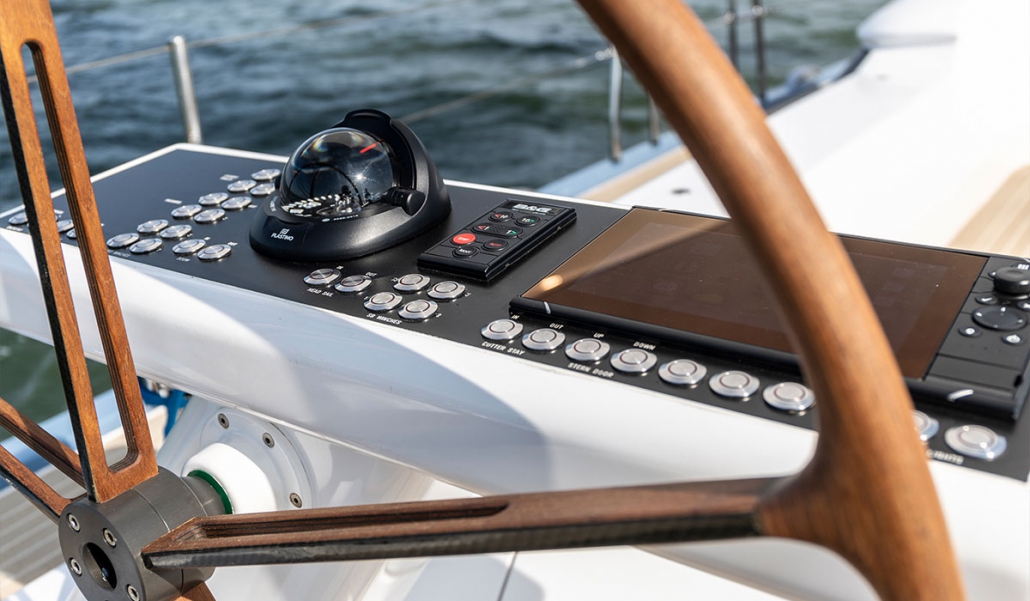

The deck is spacious. In front of the mast, the deck is flush, and also the anchor system and the anchor winch are located below deck. The hatches are flush in the deck and around the deck is a wide flat foot rail. The halyards are handled on the mast. The jib is selftacking, and the sheet goes through the mast, and a below the deck to the cockpit. In the U-shaped cockpit, two fixed cockpit tables are fitted. Aft of the cockpit, two steering pedestals are located slightly recessed in the cockpit deck.

Interior

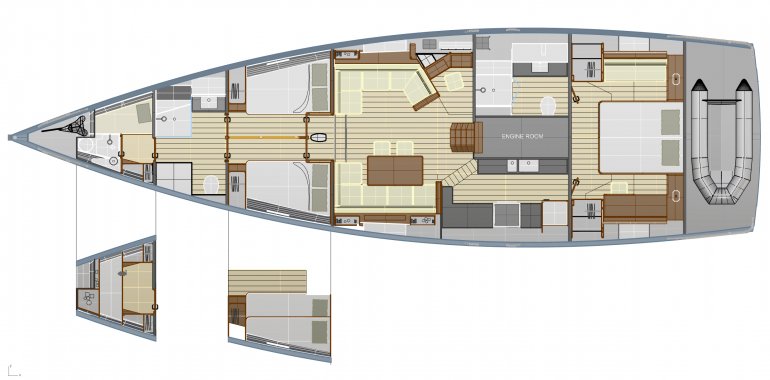

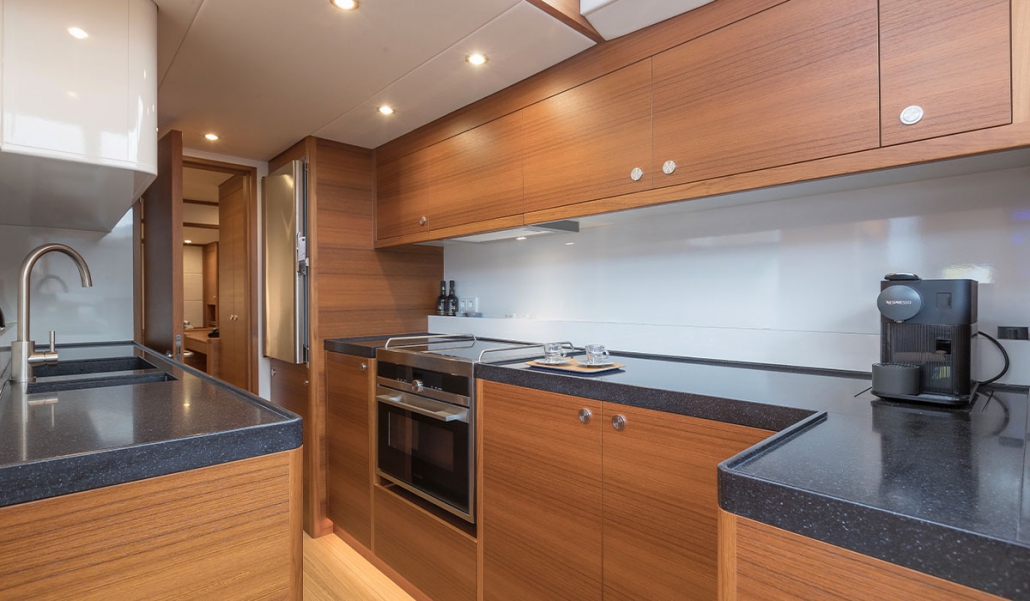

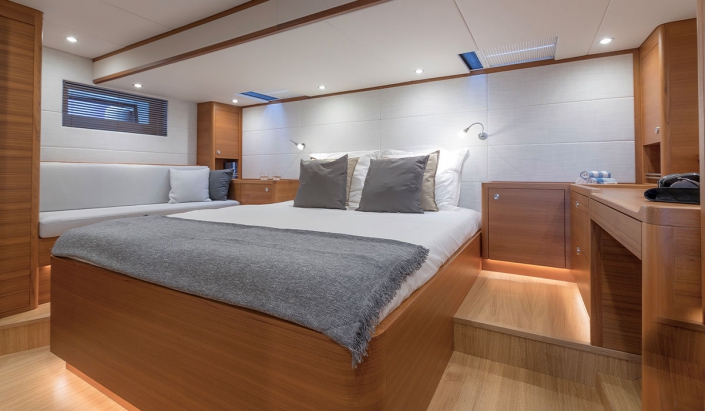

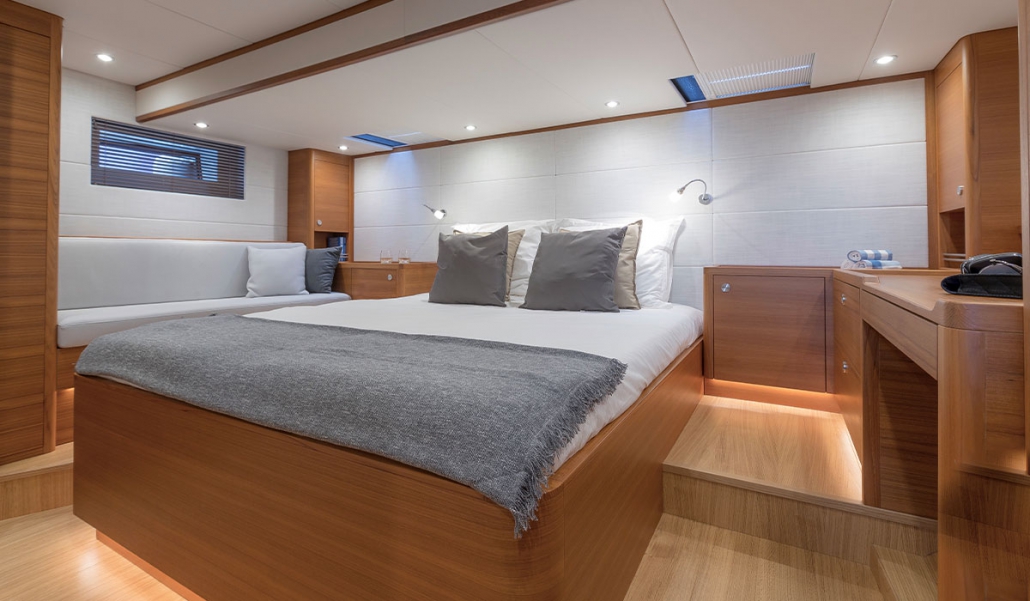

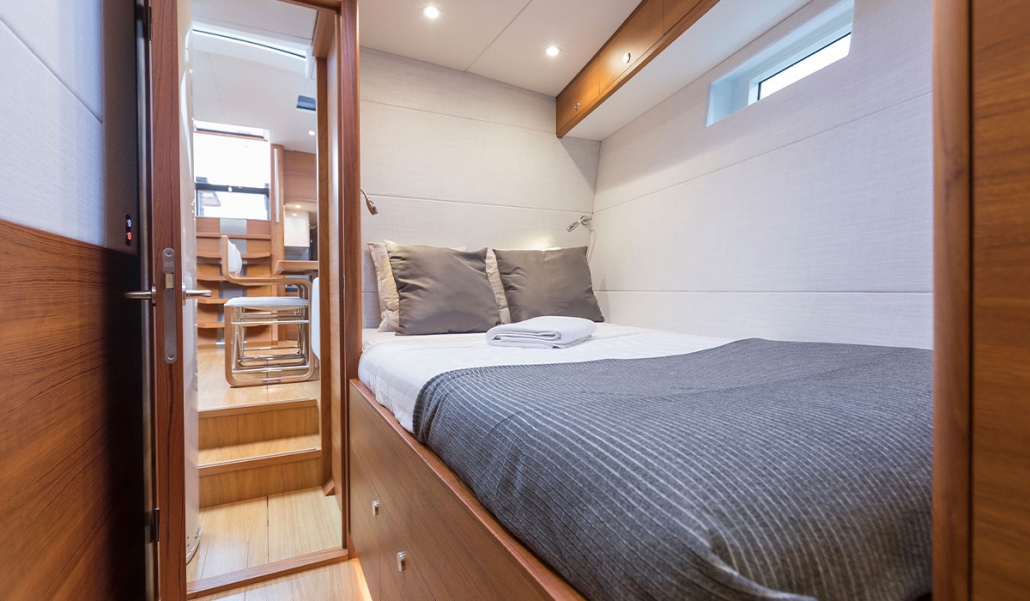

The owners cabin is located below the cockpit and aftdeck. The owners cabin has a double berth, a lot of lockers, a private head with a shower and a table. The galley is located on portside between the owners cabin and the main cabin and has a worktop at the hullside and a worktop at the engine room side. The galley is spacious and has a fridge, freezer, dishwasher, cooker, microwave and a lot of cupboards.

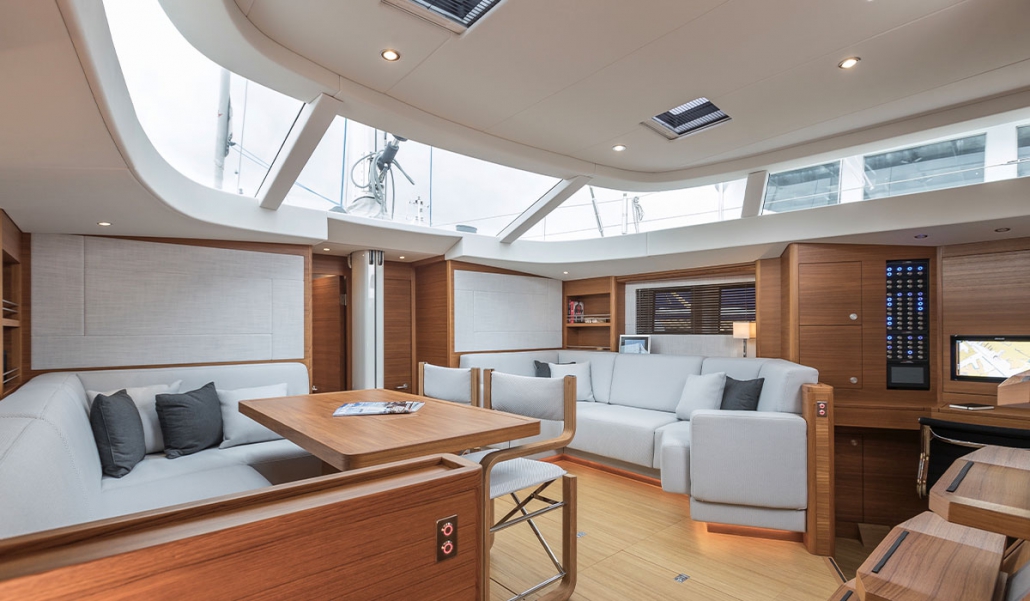

Below the decksaloon with a lot of glass a U-shaped seat is located on starboard and a dining table on portside. The cabinfloor is lifted and below the floor, the fuel- and watertanks and also the batteries are located. An office / charttable is on starboard aft of the seats. In front of the main bulkhead two double guest cabins with spacious head / shower are located. A little cabin with a washing machine is located in front of the guest head.
